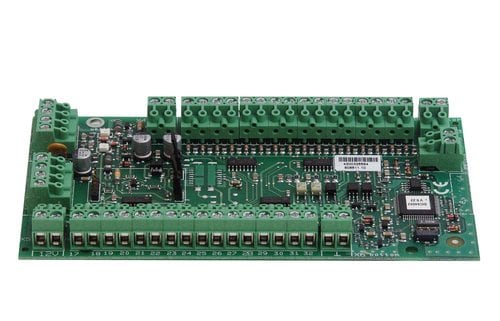

Esser 808611.10 32 LED Output esserbus Panel Transponder
Product Code: 808611.10
Output module directly driving thirty-two LEDs and enabling addressed line management of indicator displays such as mimic panels. Each output has a separate screw terminal; outputs can be programmed as positive or negative switching. A maximum of thirty-two units of this type can be connected per loop, expandable with additional isolator card code 788612. Requires external power supply; line to the display can extend up to 100 meters.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | esserbus |
| Operating Voltage | 10 … 15 V DC |
| IP Rating | IP40 |
| Operating Temperature | -10 °C … +50 °C |
