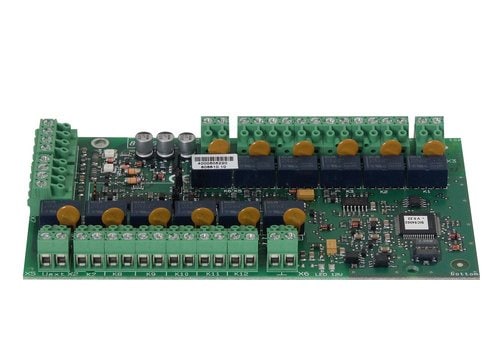

Esser 808610.10 Twelve Relay Output esserbus Transponder Module
Product Code: 808610.10
Operating as an addressed element on a multifunction loop, this module expands the number of control zones per control panel with twelve relays. Eleven of the relays are freely programmable; external switching voltage of 12 V DC or 24 V DC can be connected, or not required in dry contact mode. Expandable with optional isolator card code 788612. Line length to the controlled device can extend up to 1000 meters.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | esserbus |
| Operating Voltage | 10 … 28 V DC |
| IP Rating | IP40 |
| Operating Temperature | -10 °C … +50 °C |
