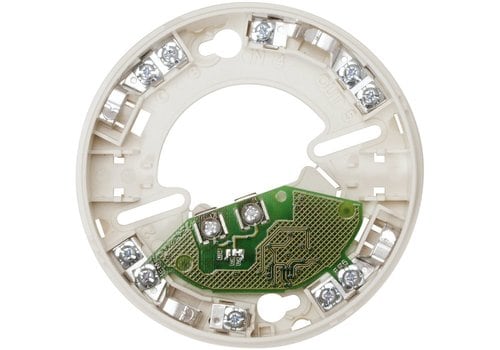

Esser 805591 IQ8Quad Relay Contact Detector Socket
Product Code: 805591
The socket for the IQ8Quad detector series carrying relay contact output. The dry contact is determined by jumper position as normally open or normally closed; it ships from the factory in normally open position. The relay switches up to 30 V DC and 1 A load, terminals accept conductors between 0.6 mm and 2 mm², and draws 5 µA with active relay when detector is absent. It triggers local commands such as ventilation shutdown or door magnet release from the point where the device is located.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
