Products / Fire Detection Systems / Esser / Esser 784768 Multimode Fiber Optic Converter - ST Connection, Up to 4 km
Esser

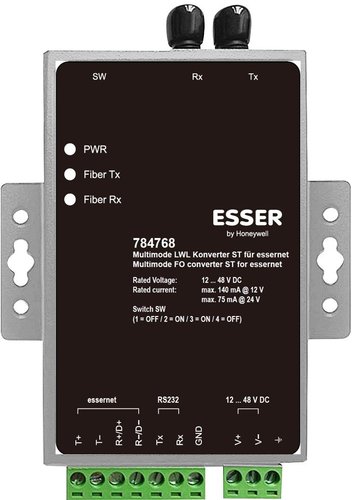

Esser 784768 Multimode Fiber Optic Converter - ST Connection, Up to 4 km
Product Code: 784768
Converter used in central networks established with multimode fiber optic cables. Compatible with G50/125 and G62.5/125 micrometer fibers; depending on the cable used, distances up to four kilometers can be achieved. Operates at 850 nm wavelength and uses ST type connector. Enables the evaluation of already-installed multimode infrastructure within campus for fire network use.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Operating Voltage | 9,5 … 48 V DC |
| IP Rating | IP20 |
| Operating Temperature | -10 °C … +60 °C |
