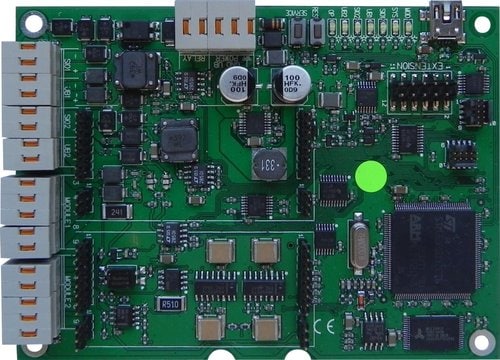

Esser 784716 ADP 4000 Redundancy Adapter – Ring Connection up to 20 FAT
Product Code: 784716
Adapter card that enables fire alarm control panel, remote display and repeater panels to be connected to the central unit via a redundant line. Up to twenty redundant fire alarm displays can be combined in a single ring; even if one transmission path fails, functions continue. The USB interface on the card facilitates on-site commissioning, maintenance and fault monitoring. Primary and secondary operating modes are configured according to the installation with PROG4000 software.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Operating Voltage | 10 … 42 V DC |
| Operating Temperature | -5 °C … +40 °C |
