Products / Fire Detection Systems / Detnov / Detnov MAD-442 2 Conventional Zone Addressed Monitoring Module
Detnov

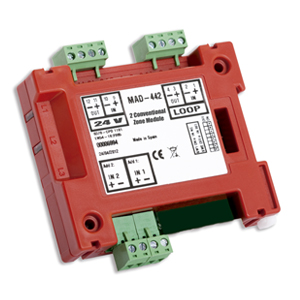

Detnov MAD-442 2 Conventional Zone Addressed Monitoring Module
Product Code: MAD-442
MAD-442 is a monitoring module that brings two conventional zones into an addressed loop from a single enclosure; it addresses two zones with a single module when integrating existing conventional installation into an addressed panel. Up to 20 conventional detectors or 32 call points can be connected per zone and each zone appears separately on the panel. Detector alarm and call point alarm, line break and short circuit fault are reported separately. It receives two addresses from the loop and requires 24 Vdc auxiliary power supply.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
