Products / Fire Detection Systems / Detnov / Detnov MAD-441 1 Conventional Zone Addressed Monitoring Module
Detnov

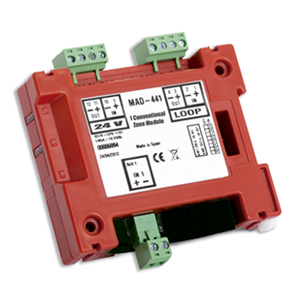

Detnov MAD-441 1 Conventional Zone Addressed Monitoring Module
Product Code: MAD-441
A monitoring module that brings a conventional zone line into an addressed system. Up to 20 conventional detectors or 32 fire alarm call points can be connected to the zone; the module reports detector alarm and call point alarm separately, and reports line break and short circuit fault separately. It receives a single address from the loop, requires 24 Vdc auxiliary power supply, and the zone line can be routed regardless of polarity.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
