Detnov MAD-419-I Addressable Control Module with Ten Relay Outputs and Built-in Isolator
Product Code: MAD-419-I

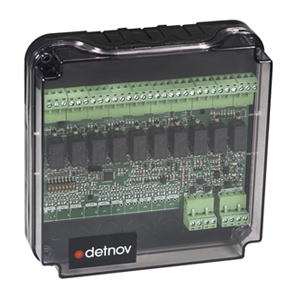

It is an addressable control module with ten de-energized relay outputs and a built-in isolator. In installations where many control lines such as elevator, damper and shutter are driven from a single point, it reduces the number of modules needed; it holds ten addresses in the loop. It requires external 24 Vdc power supply and is supplied with 172 x 170 x 48 mm mounting enclosure.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
