Products / Fire Detection Systems / Detectomat / Detectomat DL-520-TCM-SB DC520 Series Single Zone Conventional Zone Module
Detectomat

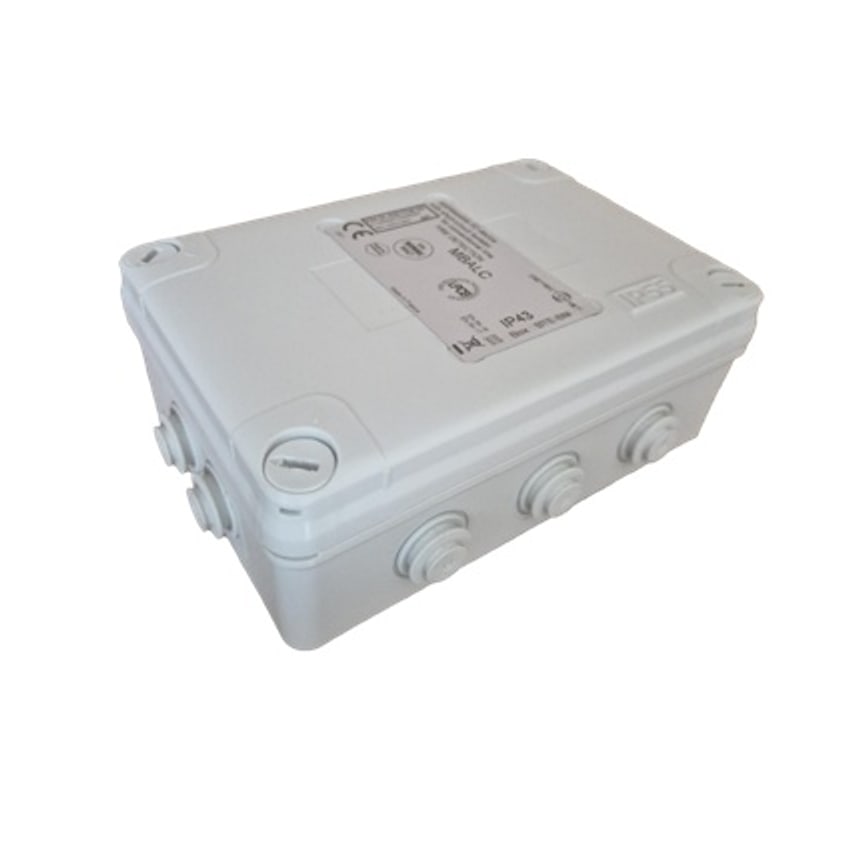

Detectomat DL-520-TCM-SB DC520 Series Single Zone Conventional Zone Module
Product Code: DL-520-TCM-SB
DL-520-TCM-SB is an intelligent input module that transfers a conventional detector zone to the D-Loop circuit of the DC520 panel. Alert and fault information from the zone appears as an addressable point on the panel; the EN 54-18 compatible bidirectional isolator isolates the line against short circuits. It is useful in renovation work where part of the existing installation will be retained. It allows transition to a modern panel without pulling all cabling from scratch.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | D-Loop |
| EN 54 Parts | EN 54-18 |
