Products / Fire Detection Systems / Bosch / Bosch LSN 1500 A 1500 mA Addressable Loop Data Bus Module
Bosch

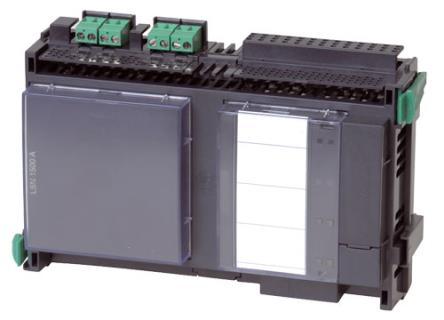

Bosch LSN 1500 A 1500 mA Addressable Loop Data Bus Module
Product Code: LSN 1500 A
A data bus card used to connect a LSN loop to an AVENAR panel. With line current up to 1500 mA, it can power up to 254 LSN improved devices; line length reaches 3000 m depending on configuration and cable type. Ring, open line, and T-branch topologies are supported. The high line current allows high-consumption devices to be grouped in the same loop and enables system design without opening a second card.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | LSN |
| Operating Voltage | 20 … 30 V DC |
| IP Rating | IP30 |
| Operating Temperature | -5 °C … +50 °C |
