Products / Fire Detection Systems / Bosch / Bosch FPE-8000-BCM AVENAR Panel Battery Supervisor Module
Bosch

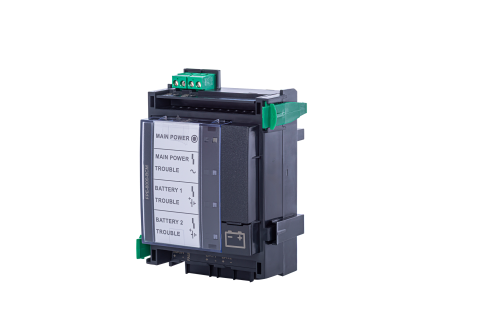

Bosch FPE-8000-BCM AVENAR Panel Battery Supervisor Module
Product Code: FPE-8000-BCM
It is a card that manages supervision between the power supply unit and battery bank in the AVENAR panel family. Battery monitoring is performed temperature-dependent according to EN 54-4:1997/A2:2006 as well as EN 12101-10:2005/AC:2007 requirements. It provides two voltage outputs, each capable of delivering 2.8 A at 24 V. Meeting both standards on a single card relieves the design burden of a separate power supply unit in projects that also include smoke evacuation.
Dealer priceSign in as a dealer for price and stock →
Technical specifications
| Architecture | Adresli |
| Protocol | LSN |
| EN 54 Parts | EN 54-4 |
| IP Rating | IP30 |
| Operating Temperature | -5 °C … +50 °C |
