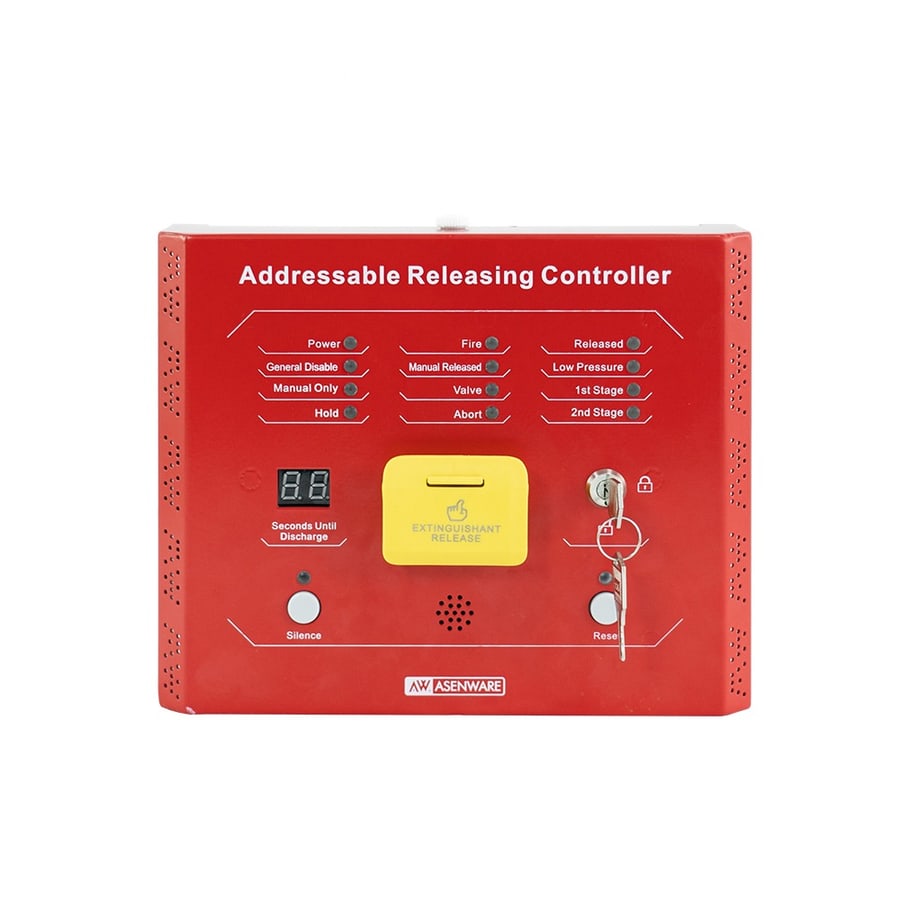

Asenware AW-D214 Addressable Suppression (Discharge) Control Module

The AW-D214 is a control unit that connects directly to an addressable fire detection loop and provides addressable gas extinguishing system discharge commands from the panel. Since it draws power from a two-wire power and data line in the 16~28 V range, no separate power cable is required; standby current at 24 V loop does not exceed 10 mA, and alarm current does not exceed 20 mA. It operates with the AW-FP200 addressable fire detection panel, and up to 20 independent addressable controllers can be defined under a single panel. With IP30 protection class, -10 °C to +50 °C operating temperature range, and resistance up to 95% relative humidity, it is suitable for mounting within enclosed spaces. During commissioning, address assignment and matching of the discharge output with the panel scenario must be verified before the extinguishing cylinder connection is made.
