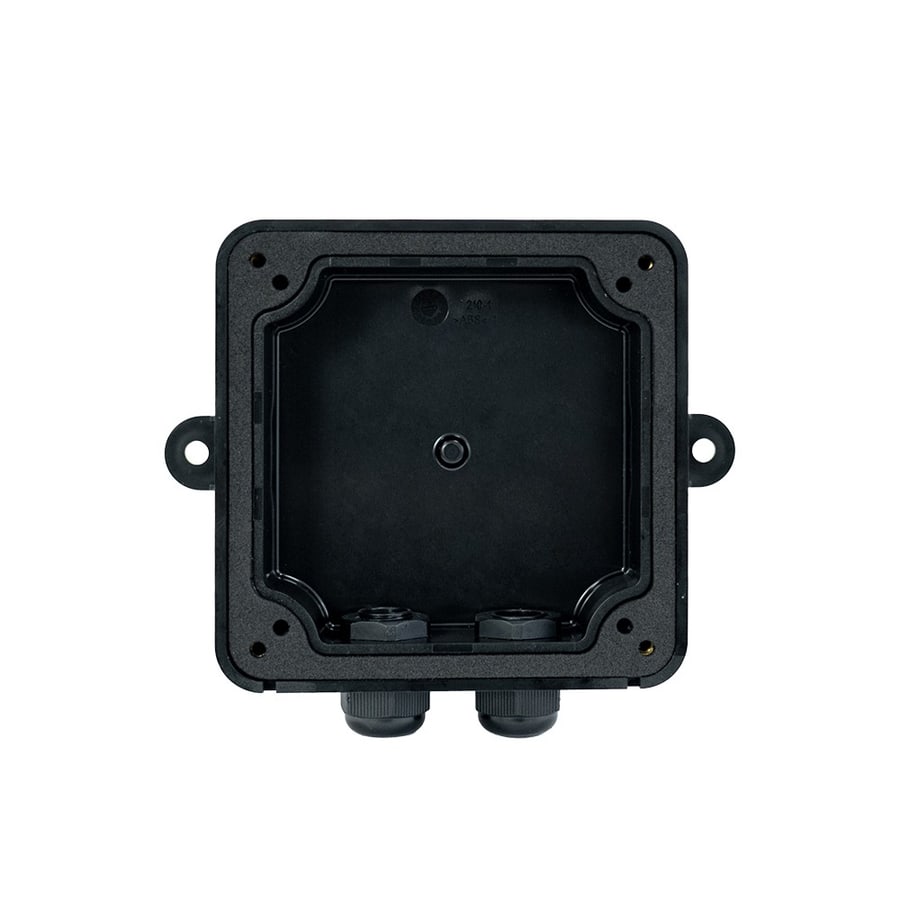

Asenware AW-D155 Waterproof Bell Mounting Base
AW-D155 is a waterproof mounting base manufactured for 6 inch fire alarm bells; positioned between the bell housing and wall surface, it isolates the cable connection point from moisture and dust. At protection class IP65, it serves as an alternative to direct surface mounting of the bell in unprotected installation locations such as carpark areas, warehouse loading ramps, and industrial facility exterior facades. Its dimensions are 133 x 117 x 37 mm, and it weighs approximately 106 grams. As a passive mechanical accessory, it requires no independent power supply or electrical connection. During installation, cable entry holes must be sealed in a way that prevents leakage; this is critical for maintaining IP65 level performance in the field.
Technical specifications
| Architecture | Konvansiyonel |
